● Big Tex · Commercial-Grade Dump
Big Tex 14TD Dump Trailer
Heavy Duty Telescopic Dump
A 5-stage front-mount telescopic cylinder, a steep 45° dump angle, and a 15,400 lb GVWR chassis — the redesigned 14TD is engineered for construction, landscaping, and cleanout crews that dump all day.
PRICING
Call for Best Price
Commercial-Grade, Redesigned
Meet the Big Tex 14TD Dump Trailer
Lifting Power, Engineered Forward
A 5-Stage Telescopic Cylinder Built for the Heaviest Loads
The heart of the 14TD is its 5-stage front-mount telescopic cylinder — engineered to lift smoothly and reliably even when the load is heavy, uneven, or shifting. Mounting the cylinder up front keeps it clear during operation and easy to reach for maintenance, and the steep 45° dump angle means material actually leaves the bed instead of clinging to it.
Dumping is power up, gravity down, fed by a 12V deep cycle battery with a 5-amp 110V onboard charger — so the hoist is ready when the day starts. Want more? Factory options add a 5-watt solar charger and a wireless remote so you can dump from outside the cab.
Underneath It All
A Chassis Specced Like a Commercial Truck
The 14TD rides on an 8″ seamless I-beam frame with 3″ channel cross-members on 16″ centers and a rugged 7-gauge smooth steel floor — the kind of structure that shrugs off skid steer buckets and demolition debris. Twin 7,000 lb premium cambered axles with quick-lubricating hubs carry the load, slowed by forward self-adjusting electric brakes on both axles and cushioned by multi-leaf slipper spring suspension with an equalizer.

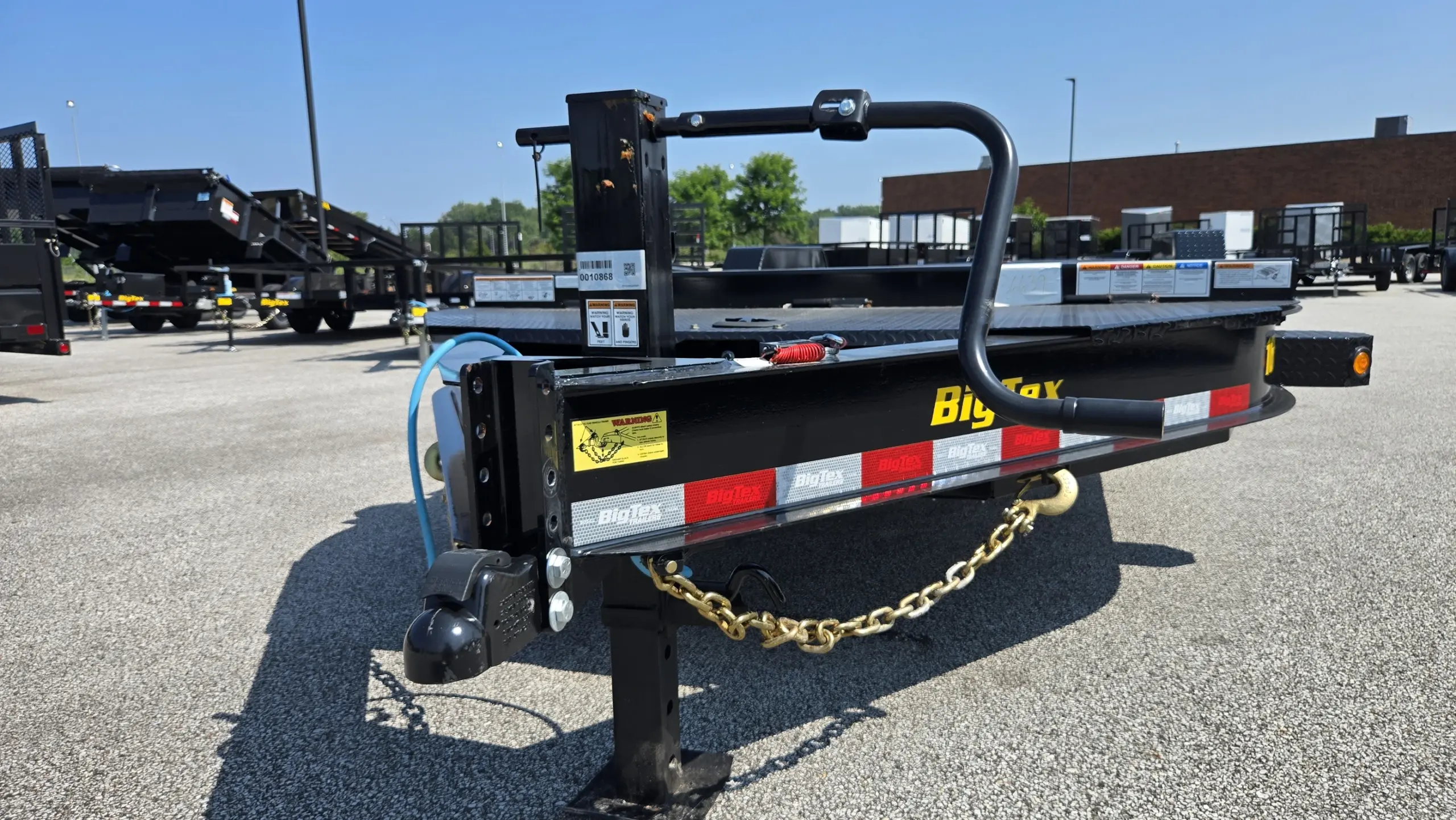

Up front, an adjustable 2-5/16″ Demco EZ-Latch coupler and a 12,000 lb side-wind drop-leg jack make hooking up fast, while ST235/80R-16 Load Range E radials on 8-lug black mod steel wheels keep it planted. A complete breakaway system with zip cable comes standard — because commercial-grade means the safety gear isn’t optional.
Details That Work as Hard as You Do
Mega Toolbox, Combo Gate, and a Tarp System Built In
Work Now, Pay Over Time
Pre-Qualify for Big Tex 14TD Financing
Available Now at Mentor Golf Carts & Trailers
In-Stock Big Tex Dump Selections
Built Around Your Work
Order Your Big Tex 14TD Today
Contact Our Team Today For A Free Quote
Call Our Team or Visit Our Showroom and Get a Competitive Quote
Phone Number
(440) 368-5115
Built to Match Your Loads
Big Tex 14TD Configurations
14' Bed · 24" Sides — 11,370 lb Cargo
14' Bed · 4' Sides — 10,830 lb Cargo
16' Bed · 24" Sides — 11,100 lb Cargo
16' Bed · 4' Sides — 10,510 lb Cargo
The Brand Behind the Bed
Why Choose Big Tex?
Specifications
Big Tex 14TD Dump Trailer Specs
Full factory specifications for the 14TD — running gear, dimensions, and standard equipment at a glance.
GVWR
15,400 lbs
All configurations
Cargo
Up to 11,370
lbs, by configuration
Bed Size
83" × 14'–16'
Two lengths
Hoist
5-Stage
Telescopic cylinder
Dump Angle
45°
Fast unloading
Axles
2 × 7,000
lb premium, cambered
| Frame | 8" seamless I-beam |
|---|---|
| Cross-Members | 3" channel on 16" centers |
| Floor | 7-gauge smooth steel |
| Sides | 24" tall, 10-gauge with formed channel supports (standard) |
| Hoist | 5-stage front-mount telescopic cylinder |
| Dump Operation | Power up / gravity down, 45° dump angle |
| Axles | 2 × 7,000 lb premium cambered, quick-lubricating hubs |
| Brakes | Forward self-adjusting electric, both axles |
| Suspension | Multi-leaf slipper spring with equalizer |
| Coupler | 2-5/16" ball, adjustable Demco EZ-Latch |
| Jack | 12,000 lb drop-leg, side wind |
| Tires | ST235/80R-16 Load Range E radials |
| Wheels | Black mod steel, 8-lug, side spare mount |
| Lighting | Recessed, grommet-mounted LED with sealed cold-weather harness |
| Trailer Plug | 7-way RV |
| Battery & Charger | 12V deep cycle with 5A 110V onboard charger |
| Safety | Complete breakaway system, 3/8" Grade 70 safety chains |
| Finish | Professional black finish with primer |
| Model | Bed | Sides | GVWR | Empty Weight | Cargo Capacity |
|---|---|---|---|---|---|
| 14TD-14C2A-BK | 83" × 14' | 24" | 15,400 lbs | 4,030 lbs | 11,370 lbs |
| 14TD-14C4A-BK | 83" × 14' | 4' | 15,400 lbs | 4,570 lbs | 10,830 lbs |
| 14TD-16C2A-BK | 83" × 16' | 24" | 15,400 lbs | 4,300 lbs | 11,100 lbs |
| 14TD-16C4A-BK | 83" × 16' | 4' | 15,400 lbs | 4,890 lbs | 10,510 lbs |
All configurations are bumperpull with 7,000 lb GAWR per axle and a 50-3/8" tongue. Capacity with the 16' bed and 4' sides: up to 16.3 cubic yards.
Standard Equipment
Factory Options
| Sides | 4' solid sheet metal sides |
|---|---|
| Ramps | 6.5' slide-in ramp package (not included standard) |
| Axles | Drop axles — lowers deck height to 24" from ground |
| Jack | 12,000 lb electric/hydraulic jack by Stillwell |
| Hoist Extras | 5W solar charger, wireless remote |
| Coupler | Adjustable pintle in channel, in lieu of coupler |
| Tires | Load Range G upgrade; spare tire & wheel |
| X-Series Package | Solar charger, swing-arm tarp, hydraulic jack, 14-ply tires |
See It Loaded, See It Lifted
Experience the Big Tex 14TD in Our Showroom
Buying a Big Tex Dump Trailer at Mentor Golf Carts & Trailers
Quick Answers Before You Order
Big Tex 14TD FAQs
These are some of the most common questions shoppers ask about the Big Tex 14TD and the Big Tex brand before they decide to order. These FAQs break down what the 14TD is, how it’s built, pricing basics, and how financing works through our dealership.
Is the Big Tex 14TD good for construction and landscaping work?
That’s exactly who it’s built for. The 14TD is Big Tex’s commercial-grade telescopic dump, designed for construction, landscaping, and waste-management professionals who haul heavy, bulky material daily — with a 15,400 lb GVWR, a 7-gauge steel floor, and a 5-stage telescopic hoist rated for the heaviest loads.
